Aluminium Fixed Windows
Product Introduction
Aluminium Fixed Windows

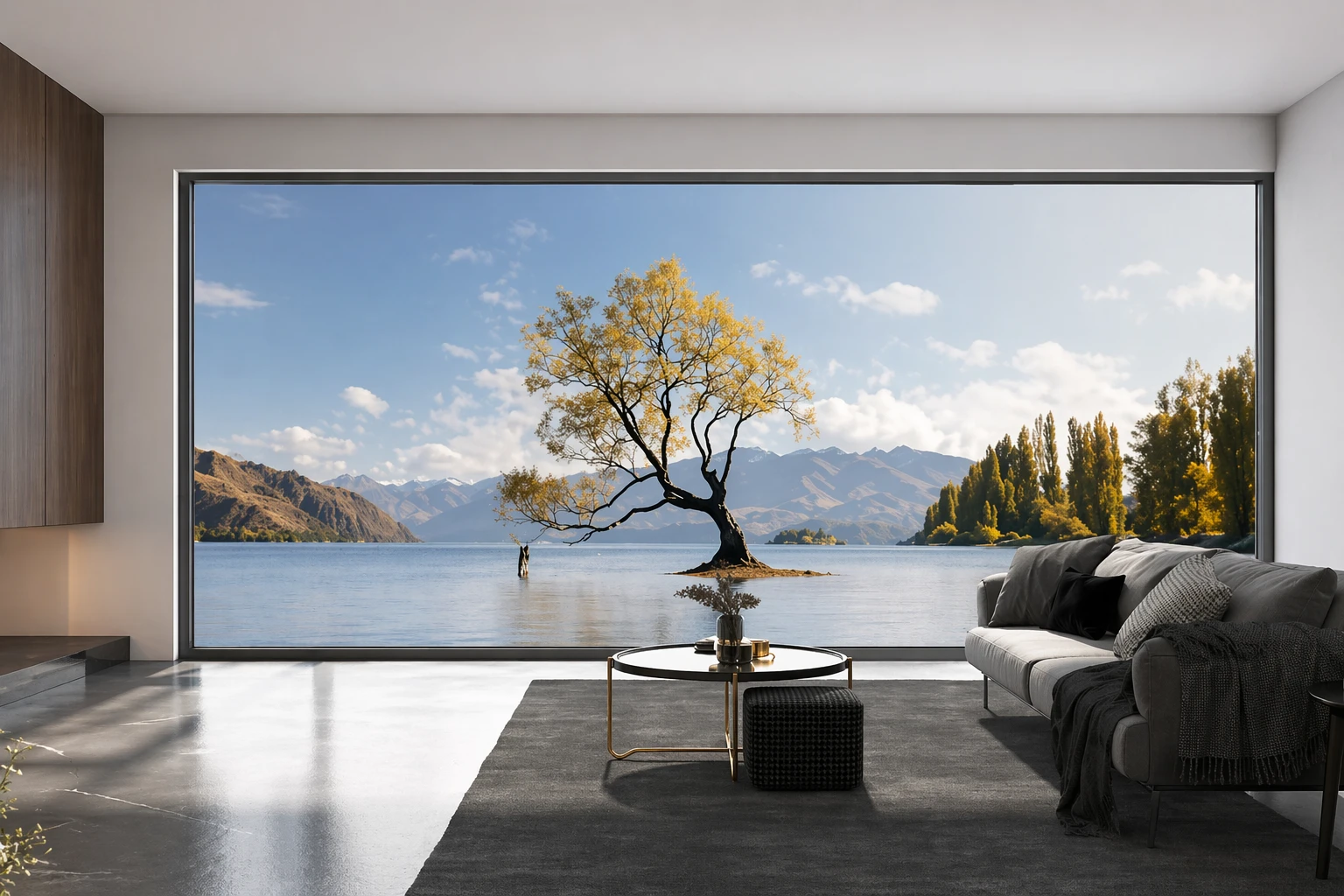

A fixed window is a non-operable, stationary window meticulously engineered to maximise natural light, provide sweeping unobstructed views, and significantly improve overall energy efficiency. Offering exceptional daylighting performance and airtight sealing, these systems seamlessly merge the indoors with the outside world.
Product Guidance
Where fixed window fit into real projects.
Use this section as a starting point when comparing aluminium frame systems, glazing options, energy performance, acoustic comfort and opening requirements. Final suitability should be reviewed against drawings, site exposure and project documents.
Typical Applications
- Living areas, stairwells and facade openings where daylight and clear views are the priority. With no opening sash, almost the whole opening is glass, so the double glazed unit sets most of the window's thermal and acoustic performance.
- Residential and commercial elevations that need larger glass areas without an opening sash, including picture windows and highlight glazing paired with operable windows or doors.
- New homes working toward NCC 2022 7-star energy targets, where large fixed glass needs a glass make-up and SHGC chosen for its orientation.
Selection Notes
- Choose the double glazed make-up by series: 5mm + 9Ar + 5mm (Living, Vista), 5mm + 12Ar + 5mm (Urban, Urban Reinforced) or 5mm + 20Ar + 5mm with a thermal break (Comfort). Low-E, laminated and acoustic glass are available on request.
- Double glazing reduces conducted heat loss but does not stop direct sun. For large west- or north-facing fixed glass, review SHGC (0.38-0.65) and shading together with the U-value (2.5-3.5 W/m²K).
- Fixed windows do not provide ventilation, so pair them with awning, sliding or louvre windows. Large fixed panels should also be checked against wind load, glass weight and installation access.
Performance
or
1200 Pa (Comfort, Urban, Urban (Reinforced))
or
200 Pa (Vista)
or
2.5-3.5 W/m²K (Comfort, Vista, Urban, Urban (Reinforced))
or
<36 dB (Comfort)
or
<40 dB (Urban)
Specifications
or
6063-T5 with 2.0mm thickness (Comfort, Urban, Urban (Reinforced))
or
Thermal break (Comfort)
or
5mm + 20Ar + 5mm (Comfort)
or
5mm + 12Ar + 5mm (Urban, Urban (Reinforced))
Flexibility
Custom Glazing, Flyscreen and Frame Colour Options
If your preferred flyscreen, glazing setup or frame colour is not listed as the default option above, our team can still help configure alternatives based on project requirements and model compatibility.

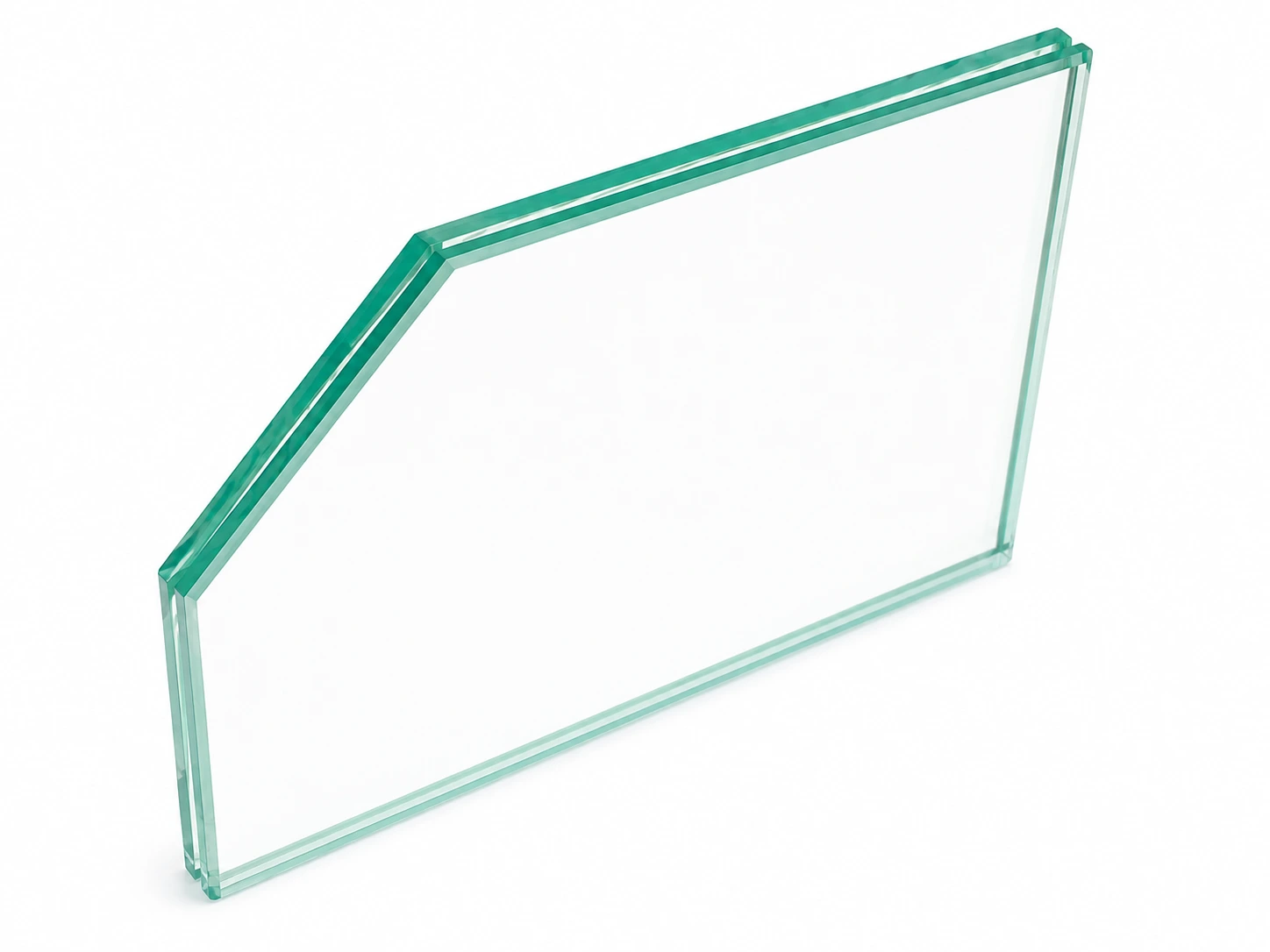

GlazingLaminated Glazing

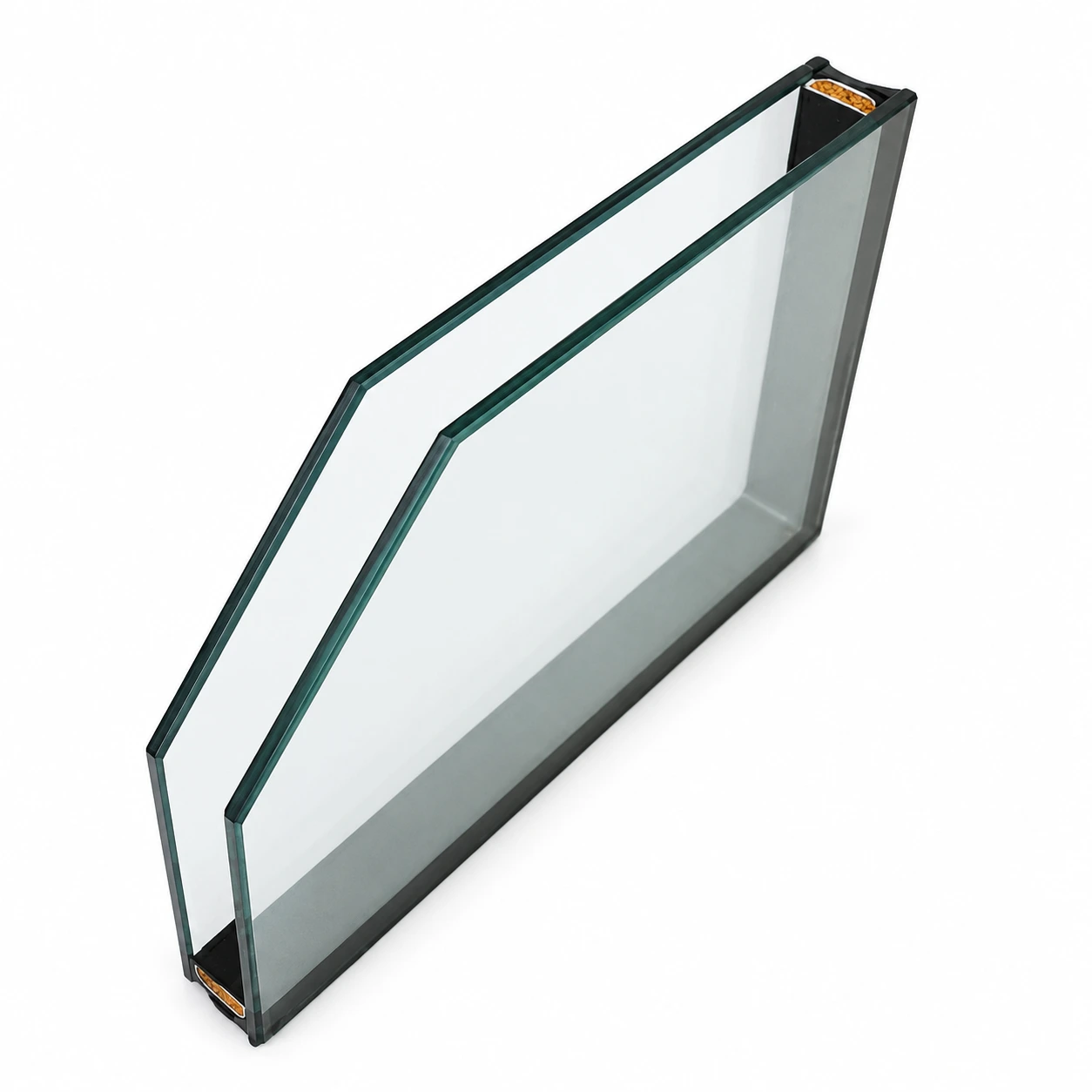

GlazingDouble Glazing

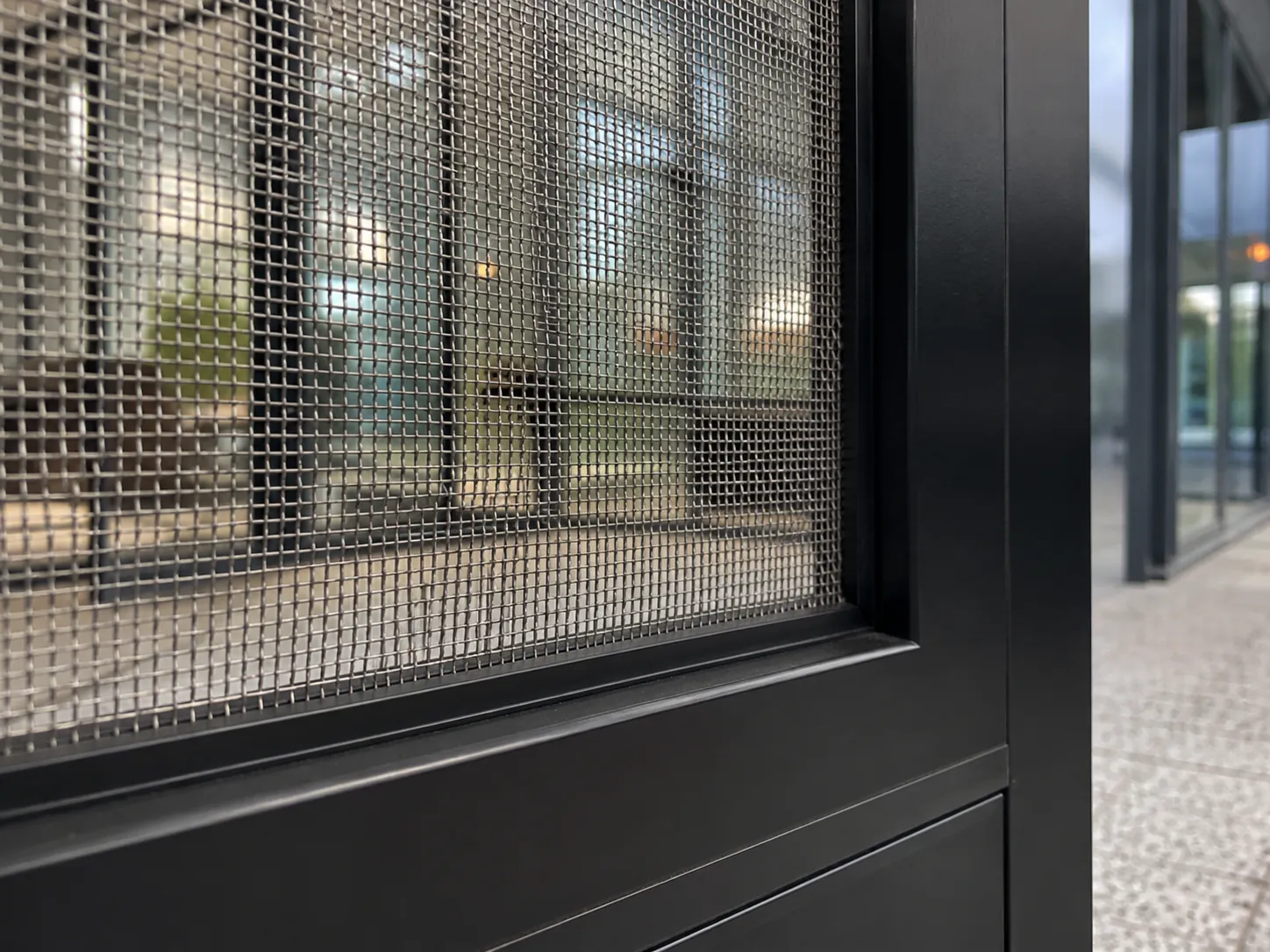

Flyscreen0.5mm Stainless Steel Mesh

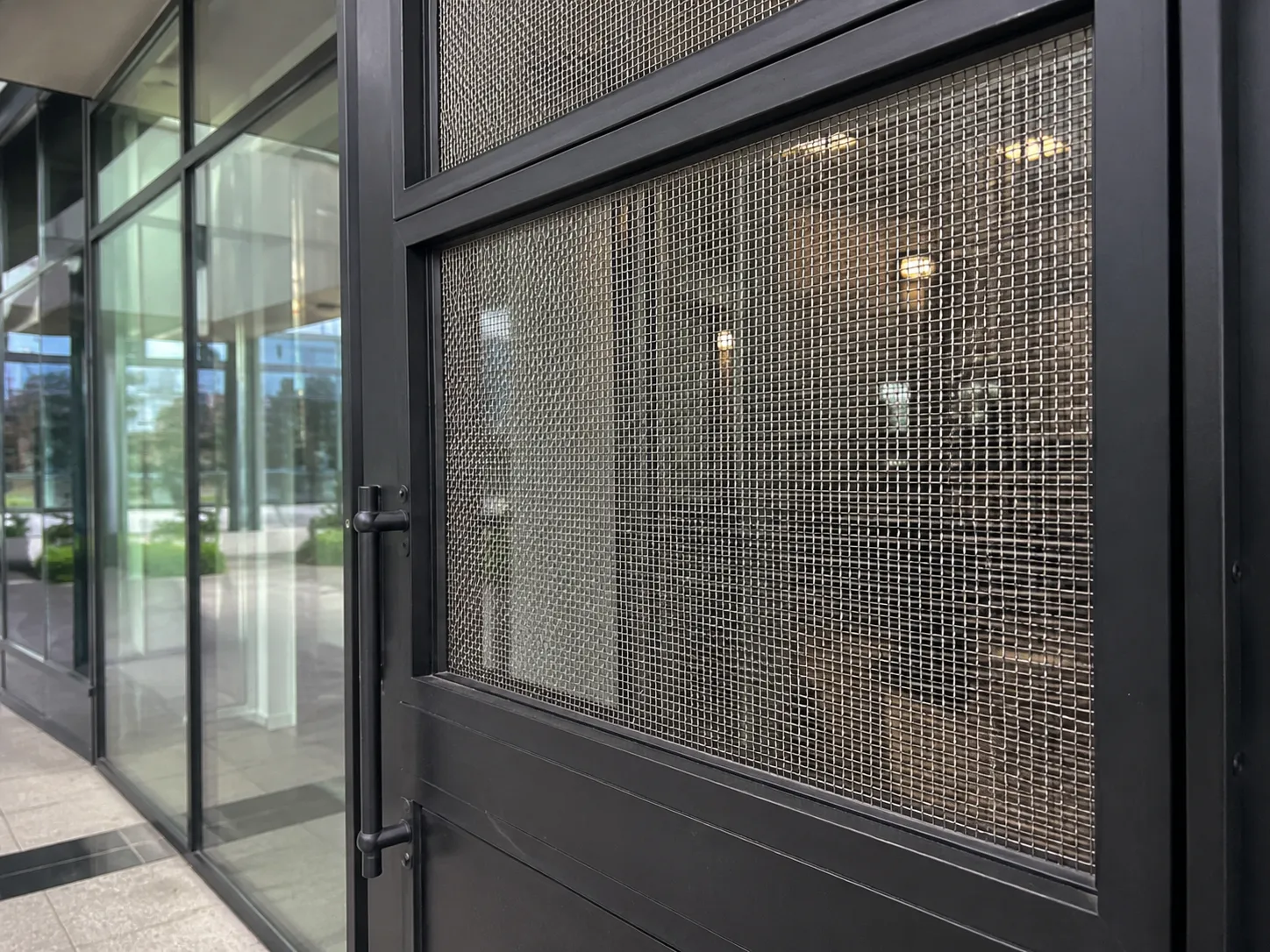

Flyscreen0.8mm Stainless Steel Mesh
Examples above are not limited to these options. We also support frosted finishes, triple glazing, heavy-duty mesh, and other project-specific requirements.
Available Colour Directions
Example finishes are indicative only. Final selections are confirmed against your preferred colour chart.
Frame Colours
Charcoal
#303030
Warm White
#EBE8E0
Mid Grey
#7E8084
Black
#000000
White
#FFFFFF
Window Colours
Bright White
#F6F6F6
Silver Grey
#C6C7C2
Light Grey
#D0D0D0
Soft Grey
#DFE2DF
Frame Colours
Charcoal
#303030
Warm White
#EBE8E0
Mid Grey
#7E8084
Black
#000000
White
#FFFFFF
Window Colours
Bright White
#F6F6F6
Silver Grey
#C6C7C2
Light Grey
#D0D0D0
Soft Grey
#DFE2DF
Custom Frame Colours
Standard and custom powder coat colours can be supported based on project requirements. Provide your preferred colour chart or finish reference, and our team will confirm availability, suitability and any lead time impact before quotation or order confirmation.
